mHC: Manifold-Constrained Hyper-Connections

Driven by parameter sharing and translation invariance, convolution initially dominated the processing of structured signals. While subsequent variations such as depthwise separable (Chollet, 2017) and grouped convolutions (Xie et al., 2017) optimized efficiency, the advent of Transformers (Vaswani et al., 2017) established Attention and Feed-Forward Networks (FFNs) as the fundamental building blocks of modern architecture. Attention mechanisms facilitate global information propagation, while FFNs enhance the representational capacity of individual features. To balance performance with the computational demands of LLMs, attention mechanisms have evolved towards efficient variants such as Multi-Query Attention (MQA) (Shazeer, 2019), Grouped-Query Attention (GQA) (Ainslie et al., 2023), and Multi-Head Latent Attention (MLA) (Liu et al., 2024a). Simultaneously, FFNs have been generalized into sparse computing paradigms via Mixture-of-Experts (MoE) (Shazeer et al., 2017; Lepikhin et al., 2020; Fedus et al., 2022), allowing for massive parameter scaling without proportional computational costs.

Macro-design governs the global topology of the network (Srivastava et al., 2015). Following ResNet (He et al., 2016a), architectures such as DenseNet (Huang et al., 2017) and FractalNet (Larsson et al., 2016) aimed to enhance performance by increasing topological complexity through dense connectivity and multi-path structures, respectively. Deep Layer Aggregation (DLA) (Yu et al., 2018) further extended this paradigm by recursively aggregating features across various depths and resolutions.

More recently, the focus of macro-design has shifted toward expanding the width of the residual stream (Chai et al., 2020; Fang et al., 2023; Xie et al., 2023; Pagliardini et al., 2024; Menghani et al., 2025; Heddes et al., 2025; Zhu et al., 2024; Mak and Flanigan, 2025; Xiao et al., 2025). Hyper-Connections (HC) (Zhu et al., 2024) introduced learnable matrices to modulate connection strengths among features at varying depths, while the Residual Matrix Transformer (RMT) (Mak and Flanigan, 2025) replaced the standard residual stream with an outer-product memory matrix to facilitate feature storage. Similarly, MUDDFormer (Xiao et al., 2025) employs multiway dynamic dense connections to optimize cross-layer information flow. Despite their potential, these approaches compromise the inherent identity mapping property of the residual connection, thereby introducing instability and hindering scalability. Furthermore, they incur significant memory access overhead due to expanded feature widths. Building upon HC, the proposed mHC restricts the residual connection space onto a specific manifold to restore the identity mapping property, while also incorporating rigorous infrastructure optimizations to ensure efficiency. This approach enhances stability and scalability while maintaining the topological benefits of expanded connections.

While the residual mapping $\mathcal{H}^{\mathrm{res}}_{l}$ is instrumental for performance, its sequential application poses a significant risk to numerical stability. As detailed in Eq. (4), when HC is extended across multiple layers, the effective signal propagation from layer $l$ to $L$ is governed by the composite mapping $\prod_{i=1}^{L-l}\mathcal{H}_{L-i}^{\mathrm{res}}$. Since the learnable mapping $\mathcal{H}^{\mathrm{res}}_{l}$ is unconstrained, this composite mapping inevitably deviates from the identity mapping. Consequently, the signal magnitude is prone to explosion or vanishing during both the forward pass and backpropagation. This phenomenon undermines the fundamental premise of residual learning, which relies on unimpeded signal flow, thereby destabilizing the training process in deeper or larger-scale models.

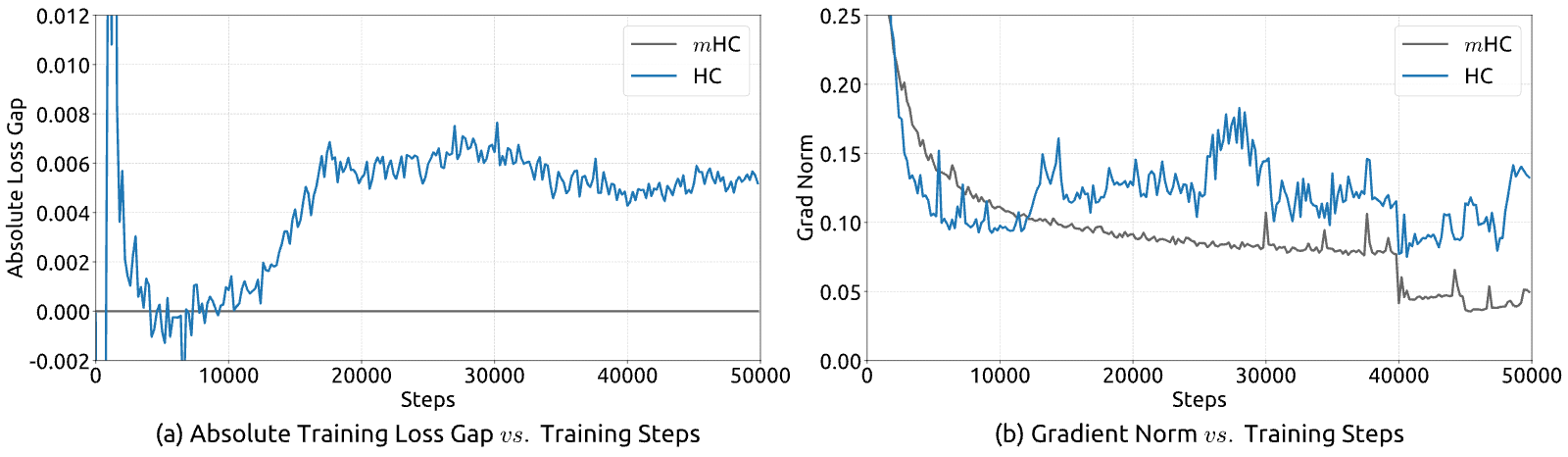

Empirical evidence supports this analysis. We observe unstable loss behavior in large-scale experiments, as illustrated in Fig. 2. Taking mHC as the baseline, HC exhibits an unexpected loss surge around the 12k step, which is highly correlated with the instability in the gradient norm. Furthermore, the analysis on $\mathcal{H}^{\mathrm{res}}_{l}$ validates the mechanism of this instability. To quantify how the composite mapping $\prod_{i=1}^{L-l}\mathcal{H}_{L-i}^{\mathrm{res}}$ amplifies signals along the residual stream, we utilize two metrics. The first, based on the maximum absolute value of the row sums of the composite mapping, captures the worst-case expansion in the forward pass. The second, based on the maximum absolute column sum, corresponds to the backward pass. We refer to these metrics as the Amax Gain Magnitude of the composite mapping. As shown in Fig. 3 (b), the Amax Gain Magnitude yields extreme values with peaks of 3000, a stark divergence from 1 that confirms the presence of exploding residual streams.

While the computational complexity of HC remains manageable due to the linearity of the additional mappings, the system-level overhead prevents a non-negligible challenge. Specifically, memory access (I/O) costs often constitute one of the primary bottlenecks in modern model architectures, which is widely referred to as the “memory wall” (Dao et al., 2022). This bottleneck is frequently overlooked in architectural design, yet it decisively impacts runtime efficiency.

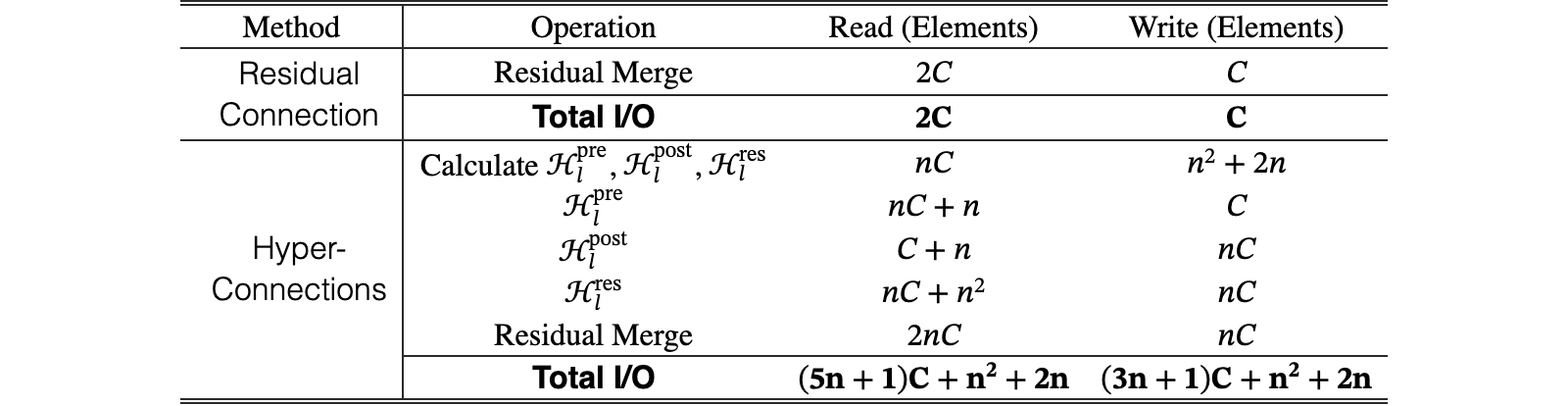

Focusing on the widely adopted pre-norm Transformer (Vaswani et al., 2017) architecture, we analyze the I/O patterns inherent to HC. Tab. 2 summarizes the per token memory access overhead in a single residual layer introduced by the $n$-stream residual design. The analysis reveals that HC increases the memory access cost by a factor approximately proportional to $n$. This excessive I/O demand significantly degrades training throughput without the mitigation of fused kernels. Besides, since $\mathcal{H}^{\mathrm{pre}}_{l}$, $\mathcal{H}^{\mathrm{post}}_{l}$, and $\mathcal{H}^{\mathrm{res}}_{l}$ involve learnable parameters, their intermediate activations are required for backpropagation. This results in a substantial increase in the GPU memory footprint, often necessitating gradient checkpointing to maintain feasible memory usage. Furthermore, HC requires $n$-fold more communication cost in pipeline parallelism (Qi et al., 2024), leading to larger bubbles and decreasing the training throughput.

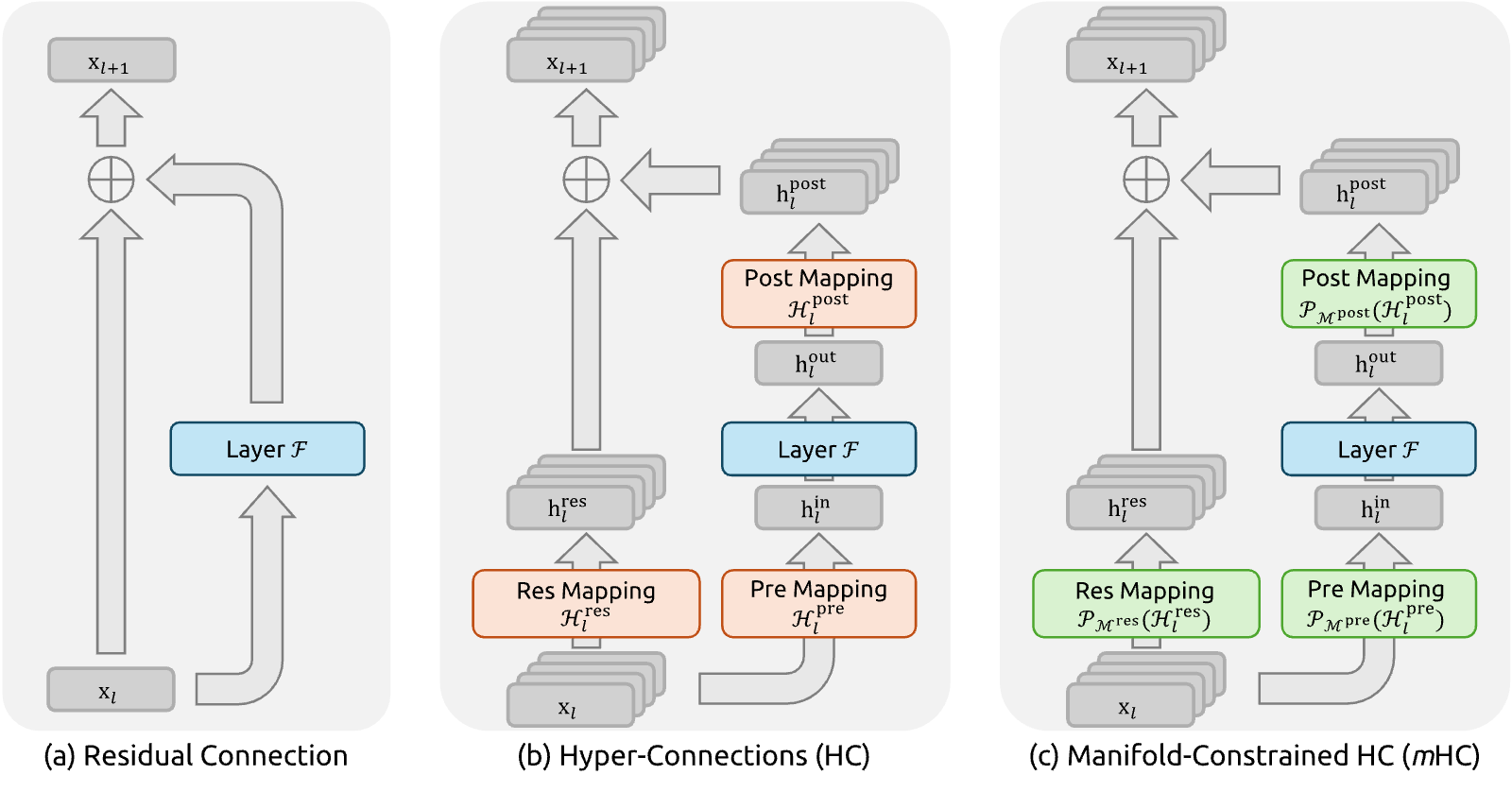

Drawing inspiration from the identity mapping principle (He et al., 2016b), the core premise of mHC is to constrain the residual mapping $\mathcal{H}^{\mathrm{res}}_{l}$ onto a specific manifold. While the original identity mapping ensures stability by enforcing $\mathcal{H}^{\mathrm{res}}_{l}=\mathbf{I}$, it fundamentally precludes information exchange within the residual stream, which is critical for maximizing the potential of multi-stream architectures. Therefore, we propose projecting the residual mapping onto a manifold that simultaneously maintains the stability of signal propagation across layers and facilitates mutual interaction among residual streams to preserve the model’s expressivity. To this end, we restrict $\mathcal{H}^{\mathrm{res}}_{l}$ to be a doubly stochastic matrix, which has non-negative entries where both the rows and columns sum to 1. Formally, let $\mathcal{M}^{\mathrm{res}}$ denote the manifold of doubly stochastic matrices (also known as the Birkhoff polytope). We constrain $\mathcal{H}^{\mathrm{res}}_{l}$ to $\mathcal{P}_{\mathcal{M}^{\mathrm{res}}}(\mathcal{H}^{\mathrm{res}}_{l})$, defined as:

where $\mathbf{1}_{n}$ represents the $n$-dimensional vector of all ones.

It is worth noting that when $n=1$, the doubly stochastic condition degenerates to the scalar $1$, thereby recovering the original identity mapping. The choice of double stochasticity confers several rigorous theoretical properties beneficial for large-scale model training:

Additionally, we impose non-negativity constraints on the input mappings $\mathcal{H}^{\mathrm{pre}}_{l}$ and output mappings $\mathcal{H}^{\mathrm{post}}_{l}$. This constrain prevents signal cancellation arising from the composition of positive and negative coefficients, which can also be considered as a special manifold projection.

In this section, we detail the calculation process of $\mathcal{H}^{\mathrm{pre}}_{l},\mathcal{H}^{\mathrm{post}}_{l},\text{and }\mathcal{H}^{\mathrm{res}}_{l}$ in mHC. Given the input hidden matrix $\mathbf{x}_{l}\in\mathbb{R}^{n\times C}$ at the $l$-th layer, we first flatten it into a vector $\vec{\mathbf{x}}_{l}=\text{vec}(\mathbf{x}_{l})\in\mathbb{R}^{1\times nC}$ to preserve full context information. Then, we follow the original HC formulation to get the dynamic mappings and the static mappings as follows:

where $\varphi^{\mathrm{pre}}_{l},\varphi^{\mathrm{post}}_{l}\in\mathbb{R}^{nC\times n}$ and $\varphi^{\mathrm{res}}_{l}\in\mathbb{R}^{nC\times n^{2}}$ are linear projections for dynamic mappings and $\text{mat}(\cdot)$ is a reshape function from $\mathbb{R}^{1\times n^{2}}$ to $\mathbb{R}^{n\times n}$.

Then, the final constrained mappings are obtained via:

where $\sigma(\cdot)$ denotes the Sigmoid function. The $\text{Sinkhorn-Knopp}(\cdot)$ operator firstly makes all elements to be positive via an exponent operator and then conducts iterative normalization process that alternately rescales rows and columns to sum to 1. Specifically, given a positive matrix $\mathbf{M}^{(0)}=\exp(\tilde{\mathcal{H}}^{\mathrm{res}}_{l})$ as the start point, the normalization iteration proceeds as:

where $\mathcal{T}_{r}$ and $\mathcal{T}_{c}$ denote row and column normalization, respectively. This process converges to a doubly stochastic matrix $\mathcal{H}^{\mathrm{res}}_{l}=\mathbf{M}^{(t_{\text{max}})}$ as $t_{\text{max}}\to\infty$. We choose $t_{\text{max}}=20$ as a practical value in our experiments.

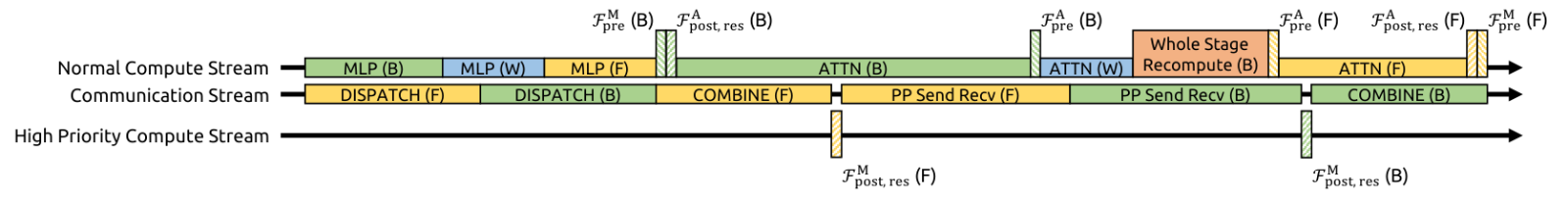

In this section, we detail the infrastructure design tailored for mHC. Through rigorous optimization, we implement mHC (with $n=4$) in large-scale models with a marginal training overhead of only 6.7%.

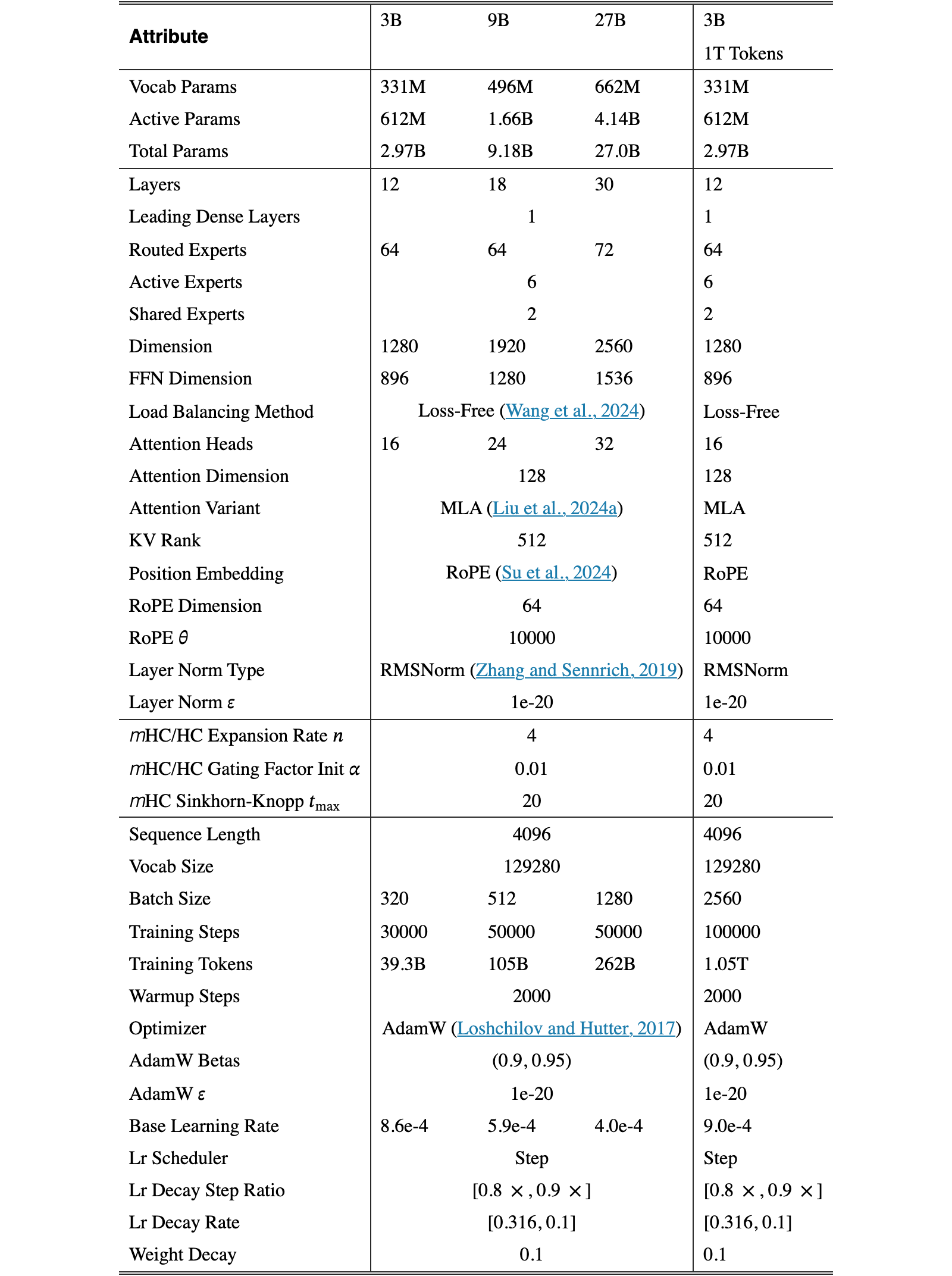

We validate the proposed method via language model pre-training, conducting a comparative analysis between the baseline, HC, and our proposed mHC. Utilizing MoE architectures inspired by DeepSeek-V3 (Liu et al., 2024b), we train four distinct model variants to cover different evaluation regimes. Specifically, the expansion rate $n$ for both HC and mHC is set to 4. Our primary focus is a 27B model trained with a dataset size proportional to its parameters, which serves as the subject for our system-level main results. Expanding on this, we analyze the compute scaling behavior by incorporating smaller 3B and 9B models trained with proportional data, which allows us to observe performance trends across varying compute. Additionally, to specifically investigate the token scaling behavior, we train a separate 3B model on a fixed corpus of 1 trillion tokens. Detailed model configurations and training hyper-parameters are provided in Appendix A.1.

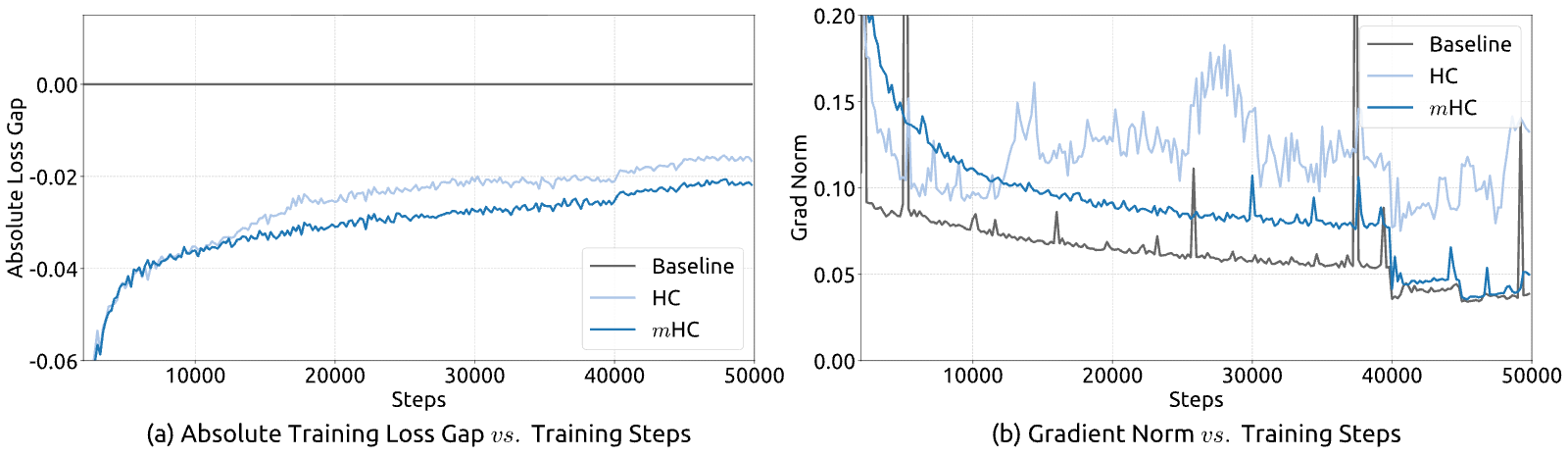

We begin by examining the training stability and convergence of the 27B models. As illustrated in Fig. 5 (a), mHC effectively mitigates the training instability observed in HC, achieving a final loss reduction of 0.021 compared to the baseline. This improved stability is further corroborated by the gradient norm analysis in Fig. 5 (b), where mHC exhibits significantly better behavior than HC, maintaining a stable profile comparable to the baseline.

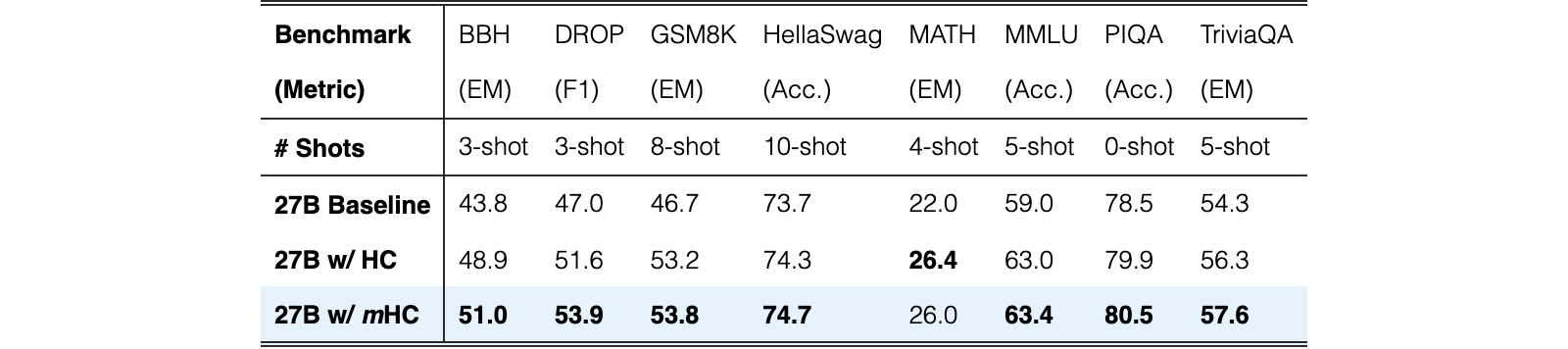

Tab. 4 presents the downstream performance across a diverse set of benchmarks (Hendrycks et al., 2020; Cobbe et al., 2021; Zellers et al., 2019; Hendrycks et al., 2021; Bisk et al., 2020; Joshi et al., 2017). mHC yields comprehensive improvements, consistently outperforming the baseline and surpassing HC on the majority of tasks. Notably, compared to HC, mHC further enhances the model’s reasoning capabilities, delivering performance gains of 2.1% on BBH (Suzgun et al., 2022) and 2.3% on DROP (Dua et al., 2019).

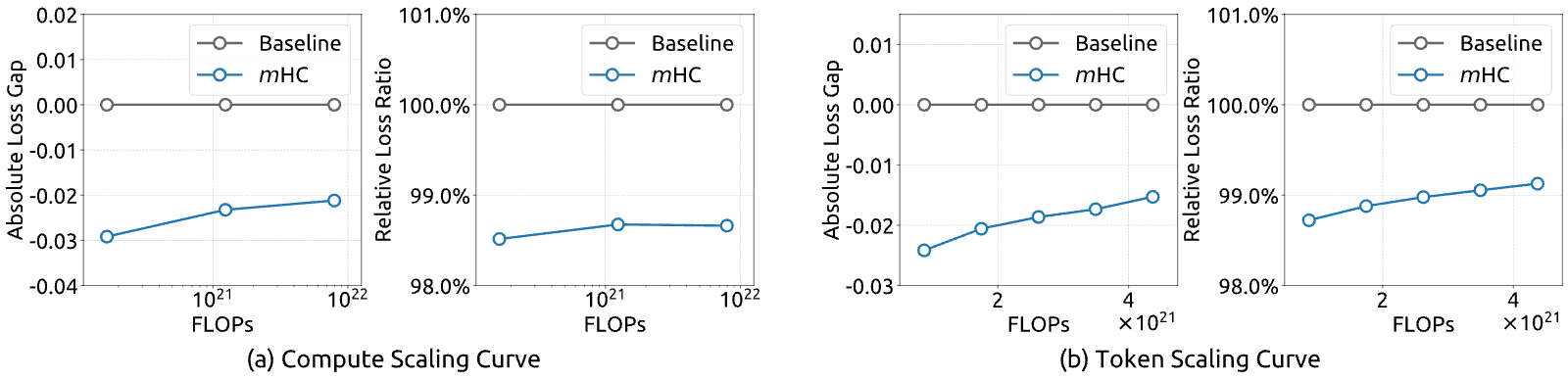

To assess the scalability of our approach, we report the relative loss improvement of mHC against the baseline across different scales. In Fig. 6 (a), we plot the compute scaling curve spanning 3B, 9B, and 27B parameters. The trajectory indicates that the performance advantage is robustly maintained even at higher computational budgets, showing only marginal attenuation. Furthermore, we examine the within-run dynamics in Fig. 6 (b), which presents the token scaling curve for the 3B model. Collectively, these findings validate the effectiveness of mHC in large-scale scenarios. This conclusion is further corroborated by our in-house large-scale training experiments.

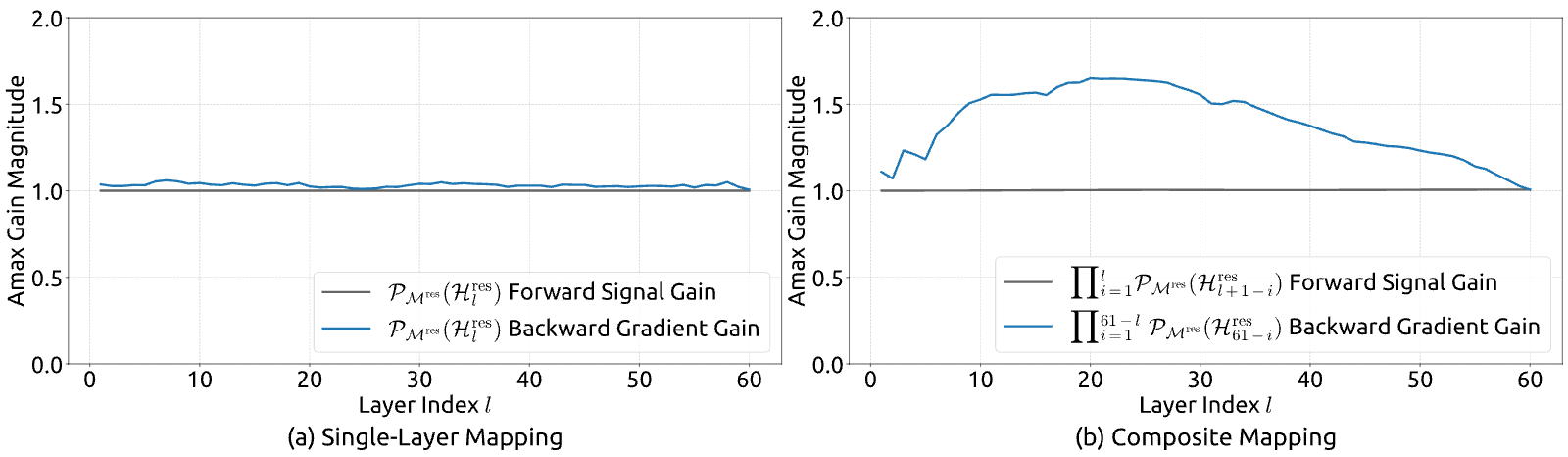

Similar to Fig. 3, Fig. 7 illustrates the propagation stability of mHC. Ideally, the single-layer mapping satisfies the doubly stochastic constraint, implying that both the forward signal gain and the backward gradient gain should equal to 1. However, practice implementations utilizing the Sinkhorn-Knopp algorithm must limit the number of iterations to achieve computational efficiency. In our settings, we use 20 iterations to obtain an approximate solution. Consequently, as shown in Fig. 7(a), the backward gradient gain deviates slightly from 1. In the composite case shown in Fig. 7(b), the deviation increases but remains bounded, reaching a maximum value of approximately 1.6. Notably, compared to the maximum gain magnitude of nearly 3000 in HC, mHC significantly reduces it by three orders of magnitude. These results demonstrate that mHC significantly enhances propagation stability compared to HC, ensuring stable forward signal and backward gradient flows. Additionally, Fig. 8 displays representative mappings. We observe that for HC, when the maximum gain is large, other values also tend to be significant, which indicates general instability across all propagation paths. In contrast, mHC consistently yields stable results.
